Step 1: Select frame Size

Choose Default Size

Frame Size (W x H x D)

Quantity

Need Custom Size?

Don't see your size?

Request Custom Size Quote

Our experts will get back to you within 2 hours

Choose Printing Option

Choose Lights Option

When is your event?

Help us prioritize your order

Shipping deadlines: Order Today to secure the Delivery within 5 days

Step 2: Upload Artwork & Checkout

Upload your designs now or you can upload later

Upload Your Artwork

Upload your design file, share a link, or email it later.

Need Design Help?

Get a free 2D mockup preview of your design before ordering.

Request free 2D design preview

We'll send your mockup preview within 24 hours

Design template & assembly guide ›

How to order your backdrop

01

Choose Product

Select your product, size, and add-ons that best match your needs.

02

Upload Design

Upload your artwork or request design assistance before placing your order.

03

Review Proof

Complete checkout, receive a proof, and approve the final artwork.

04

Print & Deliver

We print your approved order and ship it directly to your doorstep.

Product Specs

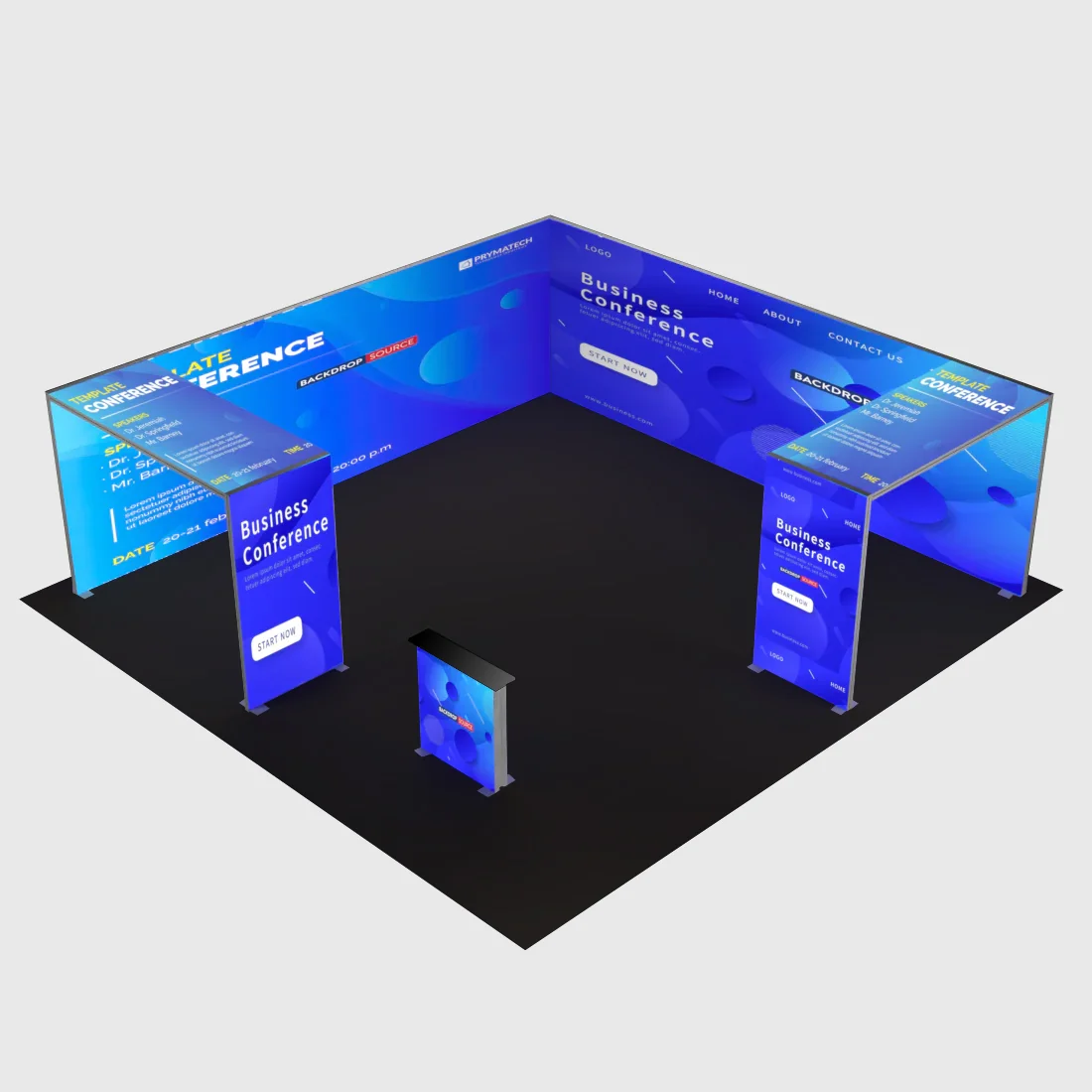

SEG Modular Lightbox Display Kit - Model 17

SEG Modular Lightbox Display Kit offers a flexible, customizable solution for creating striking illuminated displays. Using the frameless silicone edge graphics (SEG) system, it provides vibrant, edge-to-edge fabric visuals enhanced by energy-efficient LED backlighting. The modular design allows you to connect multiple lightboxes, creating unique configurations tailored to your space and branding needs. Constructed from lightweight yet durable aluminum frames, the kit features easy, tool-free assembly and quick graphic changes. Ideal for trade shows, retail environments, exhibitions, and corporate events, the SEG Modular Lightbox Display Kit delivers professional-quality visuals with versatility and portability. Elevate your marketing presence with this customizable, eye-catching display solution designed for impact and convenience.

Dye-Sublimation Printing

High-resolution dye-sublimation printed fabric with silicone edges for a taut, wrinkle-free finish.

Wrinkle-Resistant Fabric

Vibrant Dye-Sublimation Printed Fabric Graphics that are easily replaceable and wrinkle-resistant.

Durable Aluminium Frame

Modular aluminum SEG (Silicone Edge Graphics) profiles allowing customizable configurations.

Lightweight & Portable

Lightweight frame design with optional carry case for convenient transport.

Key Features

Modular Design allows for flexible configurations and easy expansion to suit various display needs
Silicone Edge Graphics (SEG) for a clean, frameless appearance with edge-to-edge fabric display
Vibrant Dye-Sublimation Printed Fabric Graphics that are easily replaceable and wrinkle-resistant
Integrated LED Lighting for uniform backlighting that enhances visibility and impact
Slim, Modern Aluminum Frame that's lightweight, durable, and visually seamless
Tool-Free Assembly for quick setup and takedown
Double- or Single-Sided Display Options for flexible presentation needs
Wall-Mounted, Freestanding, or Hanging Configurations available
Ideal for Trade Shows, Retail Spaces, Showrooms, and Exhibitions

Shipping & Installation

Production Lead Time: 24 business hours after artwork approval
Domestic Shipping: Delivered in 5–7 business days across Canada.
International Shipping: Available with customs-ready support
Pickup Services: Not available — all items are shipped
Installation: Optional professional setup available on request
Assembly Video: Watch on YouTube

Product Dimensions

Component	6.10m W x 2.01m H Kit	6.10m W x 2.26m H Kit	6.10m W x 2.50m H Kit
Panel 1	6.10m W x 2.01m H (609.60cm x 201.17cm) x 2pcs	6.10m W x 2.26m H (609.60cm x 225.55cm) x 2pcs	6.10m W x 2.50m H (609.60cm x 249.94cm) x 2pcs
Panel 2	1.01m W x 2.50m H (100.58cm x 249.94cm) x 2pcs	1.01m W x 2.50m H (100.58cm x 249.94cm) x 2pcs	1.01m W x 2.50m H (100.58cm x 249.94cm) x 2pcs
Panel 3	1.01m W x 2.01m H (100.58cm x 201.17cm) x 2pcs	1.01m W x 2.26m H (100.58cm x 225.55cm) x 2pcs	1.01m W x 2.50m H (100.58cm x 249.94cm) x 2pcs
Panel 4	1.01m W x 1.01m H (100.58cm x 100.58cm) x 1pc	1.01m W x 1.01m H (100.58cm x 100.58cm) x 1pc	1.01m W x 1.01m H (100.58cm x 100.58cm) x 1pc

Product Specifications

Frame Type : Modular aluminum SEG (Silicone Edge Graphics) profiles allowing customizable configurations
Modularity : Components designed for easy assembly into various shapes and sizes to suit different display needs
Graphics : High-resolution dye-sublimation printed fabric with silicone edges for a taut, wrinkle-free finish
Lighting : Built-in energy-efficient LED edge lighting for bright, even illumination
Assembly : Tool-free, quick setup with push-fit frame connectors and easy graphic insertion
Portability : Lightweight frame design with optional carry case for convenient transport
Durability : Long-lasting LED lights with low power consumption and minimal heat output
Application : Ideal for retail displays, trade shows, exhibitions, showrooms, and corporate interiors

What's included

1 x SEG Lightbox - Backwall
1 x SEG Lightbox - Sidewall
2 x SEG L Arch (front & top)
14 x Silicone edge graphics (custom printed)
LED wire connector
Transformer power cord
Power Supply
Support pole (for freestanding setups)
Set of connecting clips
Soft nylon carry bag

Artwork and file setup

We accept your artwork through WeTransfer, Dropbox, Google Drive, Email, or directly via the Upload Artwork button above. If you don't have a design ready, our in-house creative team is here to help — we'll bring your brand to life with a professionally designed layout tailored to this product.

To ensure you're confident before we print, we also offer a FREE 2D mockup preview. Use the "Request Free 2D Mockup Image" button at the top of the page and send us your content or files. We'll show you how your backdrop will look in real life.

Category	Specification
Accepted Formats	AI, PSD, PDF (high resolution preferred)
Resolution	Minimum 150 DPI at full size
Bleed	2.54cm on all sides (keep text/logos away from edges)
Colour Mode	CMYK for optimal print accuracy
Fonts	Outline all fonts or attach font files
